उत्पाद विवरण:
|
|
| उत्पत्ति के प्लेस: | चीन |
|---|---|
| ब्रांड नाम: | GUKE |
| प्रमाणन: | ISO 9001 |
| मॉडल संख्या: | 6जी-3206 6जी3206 |
|
भुगतान & नौवहन नियमों:
|
|
| न्यूनतम आदेश मात्रा: | 1 टुकड़ा |
| मूल्य: | Negasiate |
| पैकेजिंग विवरण: | पीपी बैग अंदर, कार्टन बॉक्स बाहर |
| प्रसव के समय: | भुगतान के 3-7 दिन बाद |
| भुगतान शर्तें: | टी/टी, वेस्टर्न यूनियन, पेपैल, एक्सट्रांसफर |
| आपूर्ति की क्षमता: | प्रति सप्ताह 50 पीसी |
|
विस्तार जानकारी |
|||
| सामग्री: | फेनोलिक कपड़ा | नाम का हिस्सा: | वॉशर थ्रस्ट, वॉशर-थ्रस्ट |
|---|---|---|---|
| भाग नहीं: | 6जी3206,6जी-3206 | आकार: | आकार देना |
| ओईएम: | स्वीकार करना | स्थिति: | 100% नया |
| आवेदन पत्र: | कैटरपिलर मोटर ग्रेडर 140जी ड्राइव जीपी-फाइनल | विशेषता: | टिकाऊ और लागत प्रभावी |
उत्पाद विवरण
Guangzhou GUKE Construction Machinery Co., Ltd.
With a decade of industry expertise, Guangzhou GUKE Construction Machinery Co., Ltd. is a specialized supplier focused on sealing components and comprehensive Construction machinery parts.
We leverage robust supply channels to provide a wide range of sealing products from leading brands such as N0K, SKF, and HAILLITE, coupled with professional technical support. Complementing this, our own 20-year experienced factory enables us to deliver cost-effective both standard and custom-made sealing components.
By integrating multi-brand supply with in-house manufacturing, we are positioned to be your reliable and agile supply chain partner.
| Product Overview | |

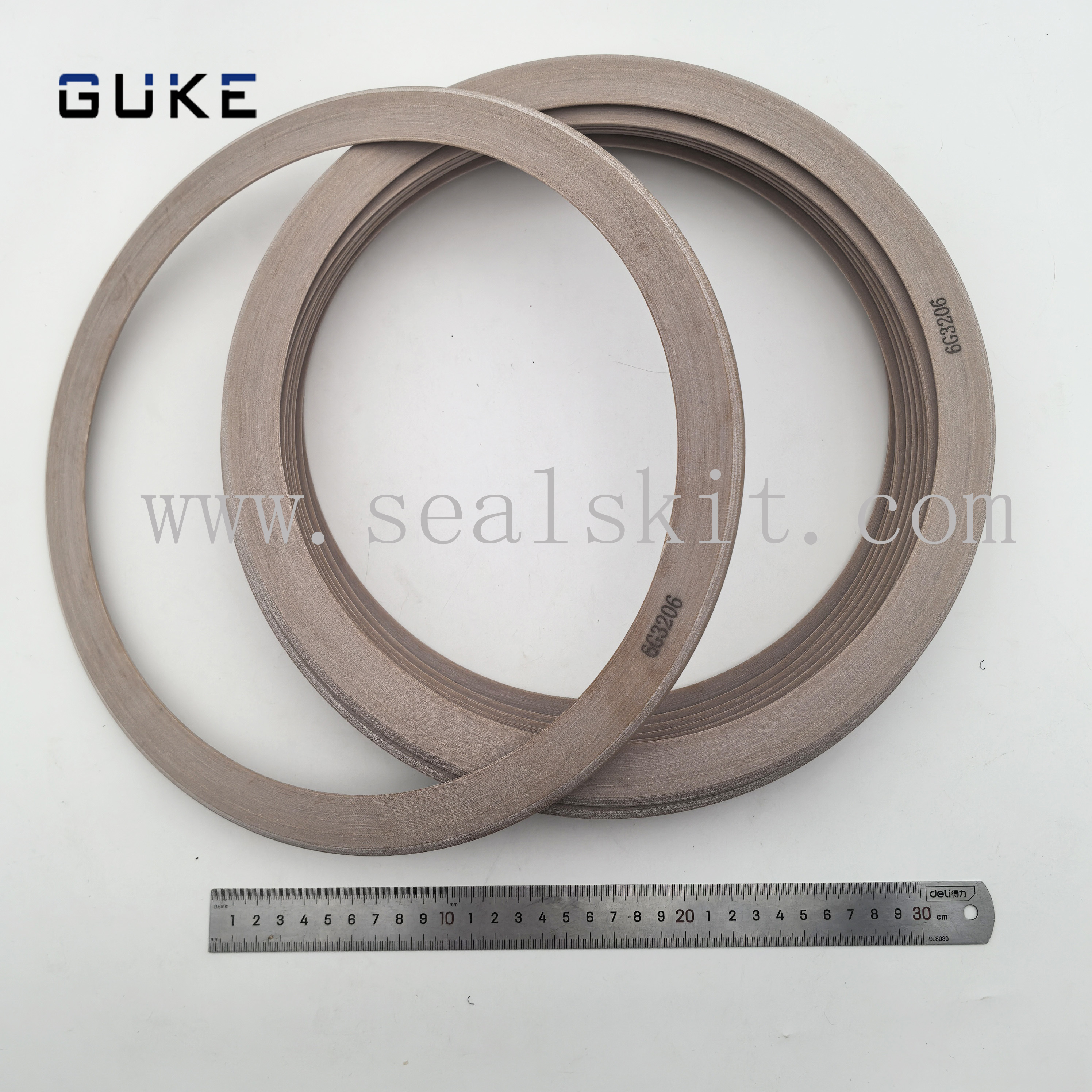

| Name: | Washer Thrust,Washer-Thrust |
| Condition | 100% New |
| Material: | Phenolic Cloth |
| Part Number: | 6G3206,6G-3206 |
| Size: | Standard Size |
| Application: | Caterpillar Motor Grader 140G Drive GP-Final |
| Feature: | Wear Resistance Cost-effective |
| Certification: | ISO 9001 |
| OEM: | Accpetable |
| vailablity: | In Stock |
| Shipping: | Express,By Air,By Sea |
Application List
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 8D-3958 | 2 | SHAFT AS-DRIVE | |
| 8D-3957 | 1 | WASHER-THRUST | ||
| 2 | 6G-3212 | 2 | SHIM PACK (INCLUDES 10-SHIMS) | |
| 3 | 8D-3877 | 2 | GEAR-SUN (28-TEETH) | |
| 4 | 8D-3591 | 2 | CARRIER-PLANETARY | |
| 5 | 030-8535 C | 16 | BOLT-LOCKING (3/8-16X0.875-IN) | |
| 7D-0035 | 8 | PLATE | ||
| 6 | 7D-7889 | 2 | GEAR-RING | |
| 7 | 2J-3506 | 38 | NUT-FULL (3/4-10-THD) | |
| 5P-8248 | 38 | WASHER-HARD (20X36.5X3.5-MM THK) | ||
| 8 | 1P-4693 | 4 | CUP-BEARING | |
| 9 | 1P-4694 | 2 | CONE-BEARING | |
| 10 | 8D-3744 | 2 | SHAFT-DRIVE | |
| 11 | 5P-4253 | 36 | BOLT-LOCKING (5/8-11X1.5-IN) | |
| 12 | 4D-6695 | 2 | SEAL-O-RING | |
| 13 | 8D-3902 | 2 | SEAL-LIP TYPE | |
| 14 | 8W-8317 | 4 | SPROCKET (20-TEETH) | |
| 15 | 0S-1591 | 10 | BOLT (3/8-16X1.5-IN) | |
| 16 | 8D-3540 | 2 | NUT (3-1/4X12-THD) | |
| 17 | 1H-9696 | 2 | SEAL-O-RING | |
| 18 | 8D-8159 | 2 | RETAINER | |
| 19 | 5P-3490 | 2 | CONE-BEARING | |
| 20 | 8S-9092 | 32 | BOLT (5/8-11X2.25-IN) | |
| 21 | 6G-1953 | 2 | RETAINER | |
| 22 | 6G-3206 | 4 | WASHER-THRUST (261.8X309X7-MM THK) | |
| 23 | 5T-7125 | 2 | HOUSING | |
| 24 | 5T-7133 | 4 | RING-WEAR | |
| 25 | 6V-8081 | 2 | SEAL-LIP TYPE | |
| 26 | 5T-7129 | 2 | HOUSING | |
| 27 | 7S-4571 | 2 | SEAL-O-RING | |
| 28 | 5D-0353 C | 12 | BOLT-LOCKING (3/8-16X1-IN) | |
| 29 | 7D-0028 | 6 | RETAINER | |
| 30 | 7D-8346 | 6 | GEAR (26-TEETH) | |
| 31 | 1S-9110 | 12 | ROLLER AS | |
| 32 | 8W-2308 C | 6 | SHAFT-PLANETARY | |
| 33 | 8D-3885 | 2 | WASHER (50.8X107.95X6.35-MM THK) | |
| 34 | 8X-8377 | 12 | WASHER (47.57X82.55X2.92-MM THK) | |
| 35 | 8D-3886 | 2 | RING-RETAINING | |
| 36 | 4D-3704 | 68 | WASHER-HARD (17X30X5-MM THK) | |
| 37 | 9F-2247 | 2 | PLUG-PIPE | |
| 38 | 5M-2894 C | 38 | WASHER-HARD (10.2X18.5X2.5-MM THK) | |
| QUANTITIES SHOWN ARE THOSE REQUIRED FOR BOTH LH & RH SIDES | ||||
| C | CHANGE FROM PREVIOUS TYPE | |||
